TopXGun FP800 Agricultural Drone

Powering Smarter Farming

80L Spraying Tank | 120L Spreading Tank | 85kg Max Payload

Püskürtme Tankı Kapasitesi :
80L
Yayılma Tankı Kapasitesi :
120L
Maksimum Yük :
85kg
Maksimum Akış Hızı :
40L/min
Serpme Çeşitleri :
Auger Feeder Feeding
Damla Boyutu :
30-500µm
Maksimum Deşarj Oranı :
400L/min
Radar Sistemi :
LiDAR + mmWave Phased Array Radar

ŞİMDİ SORUŞTUR

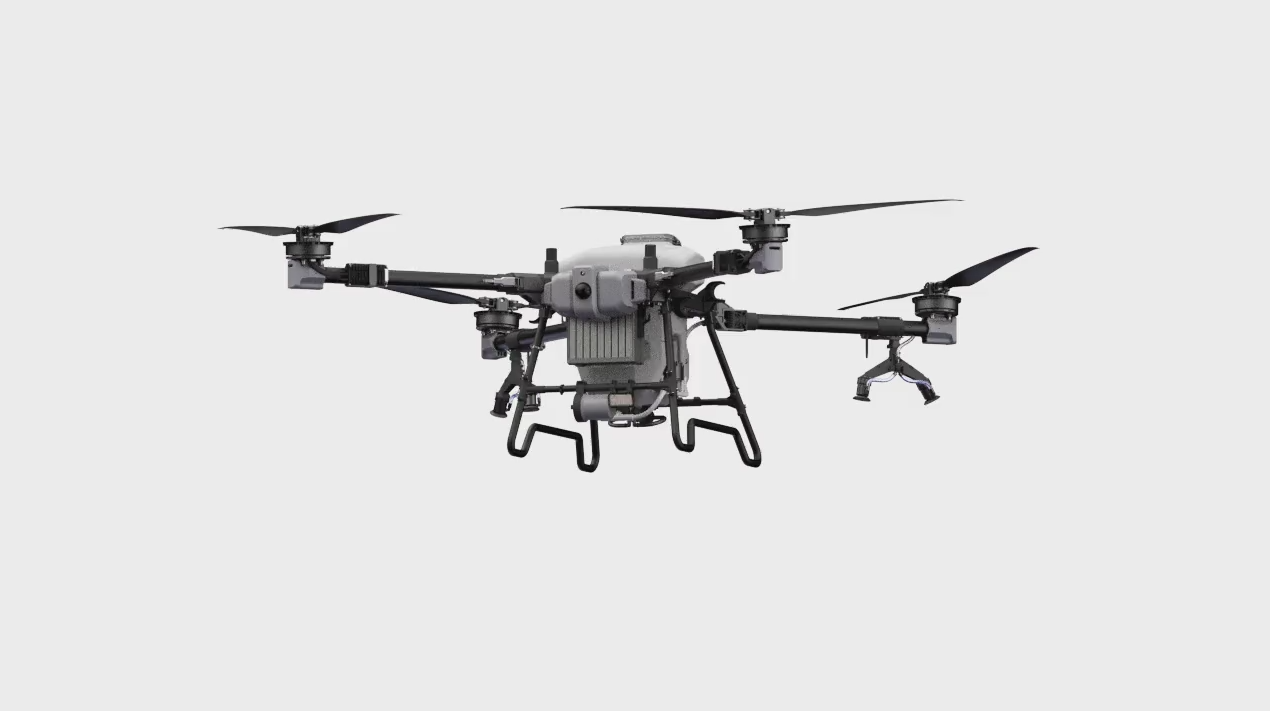

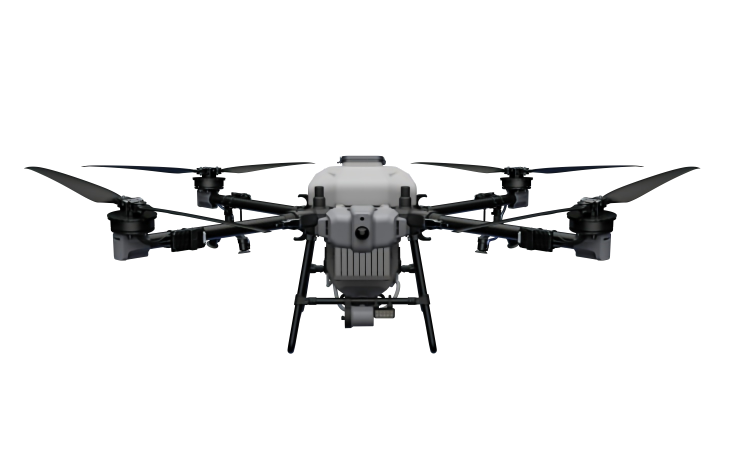

FP800 Agricultural Drone

Powering Smarter Farming

Platform Design

Aerospace-grade aluminum frame with IP67 protection

63″ high-performance propellers, durable and heat-resistant

Foldable arms for rapid transition and transport

Neatly routed wiring harness for improved maintenance efficiency

Spraying Solution

Four

Rear-mounted centrifugal nozzles
40L/min

Max flow rate
30-500μm

Adjustable atomized droplets
Within 5%

Spraying accuracy deviation

Four rear-mounted centrifugal nozzles

up to 10m spray width

Dual-channel high-flow metering pumps

40L/min max flow rate

Spreading Solution

Multiple

Auger feeder types
10m

Max spreading width
400L/min*

Max feeding rate
*Tested with medium-granule urea

Precise auger feed for accurate dosing

Centrifugal disc delivers uniform spreading width up to 10m

Compatible with multiple auger feeder types

Ultra-low application rates supported

Lifting Solution

85kg maximum payload, with high-strength lifting rope


Smart anti-sway system enabling stable flight	Automated hook release upon landing to simplify operations	Real-time weighing with visualized data

Power Solution

High-voltage intelligent battery for upgraded endurance

Grid-designed structure for efficient heat dissipation

12kW air-cooled charger with high-temperature protection

Dual-battery cycle fast charging ensures continuous operation

Smart Safety, All-round Sensing

Dual radar system: LiDAR + mmWave phased-array radar

360° scanning for broad-range obstacle detection

Simultaneous tracking of dynamic and static targets, planning optimal avoidance routes in real time

Intelligent avoidance of low-altitude obstacles

Full-Color FPV, Clear Vision

Full-color FPV delivering clear image details even in low-light conditions

Dual 80W high-brightness lights with strong night illumination

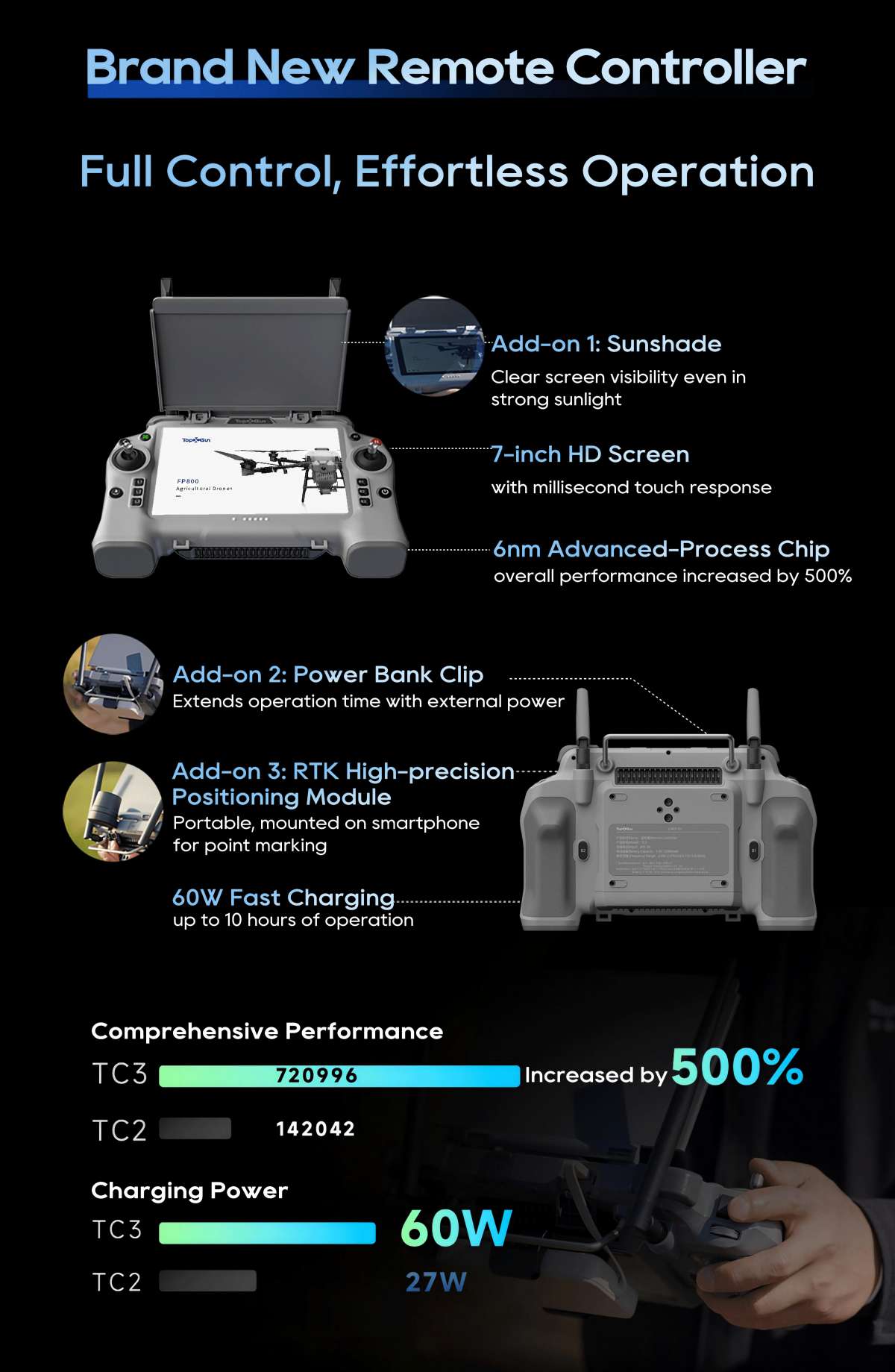

Brand New Remote Controller

Full Control, Effortless Operation

TopXGun TC3 Agri Drone Remote Control
